Effecta Lambda 60 Boiler - Discontinued*
Effecta Lambda 60 Wood Gasification Boiler



Alternative Views:


*PRODUCT DISCONTINUED - This page is for informational purposes only.


Product Code: LAMBDA-60
Discontinued

Product Description Technical Specs Extended Information and Videos

*PRODUCT DISCONTINUED - This page is for informational purposes only.



Click here for Single Line PEX Pipe

Click here for Dual Line PEX Pipe




We are proud to present the wood gasification boiler - Effecta Lambda 60.



The technology
Effecta Lambda 60 is the largest product in our range of log boilers. It is developed with the intention of being used by the owner of bigger houses, e.g. farms or mansions. It is also suitable for smaller industrial buildings.
The grate volume is as large as 52 gallons. This leads to a large amount of heat being produced every time the boiler is started, which in turn leads to fewer start-ups and less time spent in the boiler room.
The combustion is monitored by the lambda sensor, which is controlling the dampers at the air inlets. This means that the combustion is optimized every time the boiler is used, and this leads to high efficiency, less wood used and less maintenance.

System solutions
Effecta Lambda 60 is designed to be used with at least 800 gallons accumulator volume. We have ready to order solutions, complete with stacking valves, shunt valves ext. to make it easier for the installer/customer to get the right products. This ensures the right function of the products, because of the fact that everything is delivered from the same producer and all the products tested together for the best result. To make things even better, look into the possibility to connect one of our solar systems to the log system.



Effecta has always strived for constructing and producing solutions that have the highest efficiency, by themselves or connected to any other product.
The advantages with our products are that the different parts are designed especially with the whole system in mind. And as one of few producers that can supply whole range of bio energy products, you as a customer know that you do not have to look elsewhere.
The products are high-end with top rated efficiency and quality. There are no problems combining e.g. solar heating with the use of wood logs.
There are lots of good products on the market around Europe, however there are few, if any, with the ride range of products that Effecta displays.

What makes it simpler with an Effecta boiler is that the accumulators are available from the same source, they are designed to fully integrate.

The Lambda boilers are EN303-5 approved and over 90% efficient when run as recommended.
With large fireboxes they're able to run at full load for extended periods further improving fuel usage.
With the Lambda control the fire is continuously monitored and air flow is constantly adjusted to ensure the cleanest and most efficient burn. All of which means that it is easier for you because the boiler produces the same results every firing and you can know exactly what to expect.
There is also the option to fit a pellet burner allowing you to have a day off when you feel like it! If you want to reduce the number of firings during the summer, why not use a solar thermal system in conjunction with the accumulators.


Did you know in many parts of Europe it is illegal to sell a wood fired boiler that idles? (no call for heat)
Europe has been building high tech gasification boilers for many years before we here in North America became concerned with things like efficiency and particulate output.
In Sweden where the Effecta is built, all wood boilers are set up with water storage sized to meet the needs of the space being heated.


How does it work?
Anyone who has been using logs to burn, knows that it might be a bit tricky to get the combustion and efficiency to the highest level.
The logs should not be to moist and be homogenous. Effecta Lambda simplifies your wood firing substantially, because the boiler itself knows how the combustion is running with the assistance of a lambda sensor in the flue gas channel.
The air inlet dampers on the front of the boiler are optimized with motors to give you the best combustion and highest efficiency possible.

When the boiler is fired, it is taken to maximum efficiency levels as fast as possible and held there as long as possible by a built in control system the monitors the combustion and rate of burn and emissions. The computer makes the adjustments to maintain maximum burn efficiency.
The BTUs generated are stored in the insulated tanks and drawn out as needed to heat the space required.
When the storage tank is no longer able to maintain that temperature, it is time to re-fire the boiler. This is based on the heat load, so certain times of year you may fire the boiler once a month, or every other day.



Click on the pictures below to see our other other available models.


Features


Easy to use
We have put a great deal of energy in developing a very easy to use boiler with high performance.
Its main purpose is to produce energy fast and efficiently, and at the same time being easy to handle.

The control panel is simple to understand and gives the user full control over the firing.
As with all Effecta's products, the boiler is delivered with all plates mounted and all electrical wiring done.

Nice looking
The design of our log boilers is "timeless" and as such we see them complimenting any boiler room.
Just because it's an industrial product at heart, that doesn't mean a log boiler can't please the eye!

Safe to own
Effecta has warranties on its products that few in the business have. Mostly because we want our customers to feel safe and secure, but also, of course. we know our products will last for a very long time.
  • The control panel is easy to use and gives the user the information necessary.

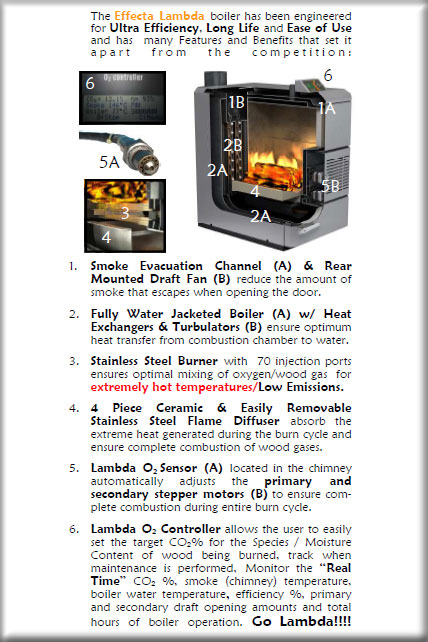

  • Negative Draft Design greatly reduces the "in your face smoke" when opening the door. This, in combination with the Lambda Control System, eliminates the need for a "by-pass lever" as is found on most positive draft boilers.
  • Smoke evacuation Port
  • Extremely attractive appearance
  • Optional 94% efficient, self cleaning (via. on-board air compressor) Effecta pellet burner attaches to the side of the Lambda wood boiler.
  • Separate Primary/Secondary Stepper Motor Control
  • Stainless Steel Burner Tube
  • Stainless Steel Afterburner
  • Easy to use O2 Control Panel
  • The lambda sensor together with our software makes the use of the boiler very easy, and the result is always the same, highly efficient combustion.
  • Charging Unit Laddomat equipped with thermic valve for an optimal stratification.
  • Effecta Lambda can be delivered with an outlet for a pellet burner on the side as an option

Accumulator systems

These "water batteries" accumulate and store the large amount of BTU's generated from the highly efficient Effecta Lambda wood gasification boiler for use at a later time. By allowing the Lambda boiler to operate at "full throttle/maximum out" during the entire burn cycle the following benefits are gained/recognized:

1. Maximum BTU energy is extracted from the wood fuel.

2. Minimal consumption of wood fuel generates large amounts of BTU's to meet various heating loads.

Lambda 60kw (205,000 BTU) boiler can heat up to 10,000 sq. ft. when used with 1,500-2,000 gallon accumulator tank.

The highly efficient combustion process and the large grate means that you don’t need to refill the boiler very often, as the energy is stored in the accumulator tank ready to be used when needed.

Apart from size you can also choose to have an instantaneous hot water coil in the storage. This means that the accumulator is storing heat from the Lambda maximizing it's efficiency and offering hot water on demand without the space of another cylinder to be accommodated.

Effecta Solar

Using solar energy to supplement or replace the wood firing in the warmer months gives you free hot water. Effecta have a fully integrated system with the accumulators being rated “best in test” at the prestigious Swedish SP test institute. They also offer a range of solar panels and tubes to complement your accumulator. If the standard range is not suited, ask for something different. Effecta are experts in bespoke sizes and configurations as well! Even if you're short of space their Comfort solar system allows you to integrate electric water heating with solar to take maximum advantage of the sun without a boiler running!

Lambda Sensor

Effecta Lambda 60 registers and controls the combustion during the whole firing session. This means that the amount of pollutant in the smoke is down to a minimum. Of course the efficiency is very high, and one of the best things is that you get the same result everytime the boiler is used, no matter who is using it. The lambda control takes care of that.
