The smallest unit in the series, the Escape 1200 N Wood Stove efficiently heats up to 1,200 sq. ft., with a heat output of 75,000 BTU/h. This wood stove is non-catalytic and EPA certified, with an emissions rate of 1.7 g/h, and features NexBurn technology, ensuring quick ignition and more complete combustion from front to back. The addition of a tertiary combustion zone enhances performance while maintaining clean combustion. The deeper firebox allows for greater ash accumulation, reducing maintenance. A simple, reliable unit designed to get the job done.
Includes: pedestal, rear heat deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air control, stainless steel heat shield
|
Specifications
|
Escape 1200 N
|
|
Fuel
|
Wood
|
|
Maximum Heat Output
|
75,000 BTUs
|
|
Heat Area
|
250 - 1,200 sq. ft.
|
|
Optimum Efficiency
|
81%
|
|

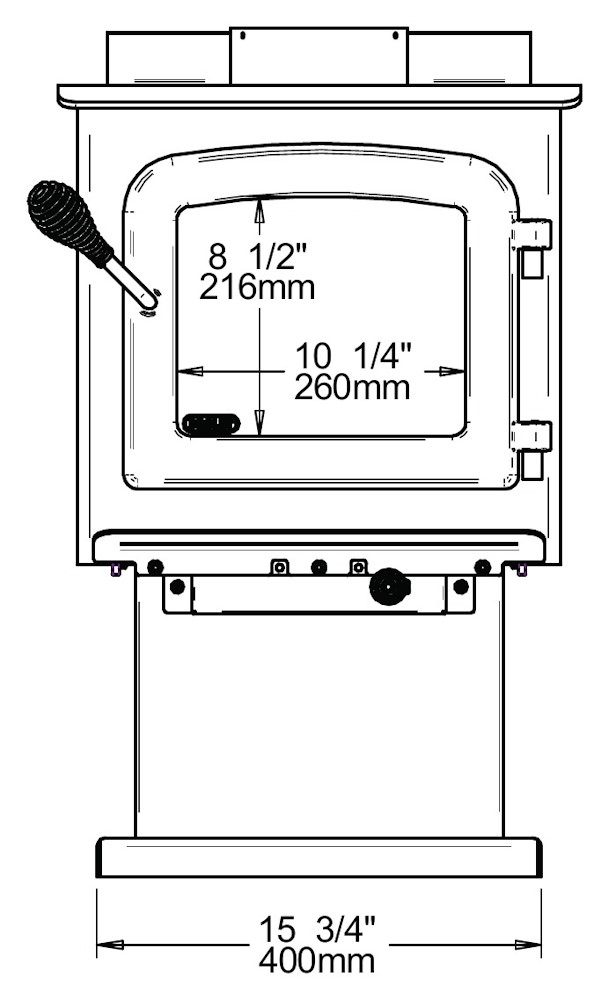

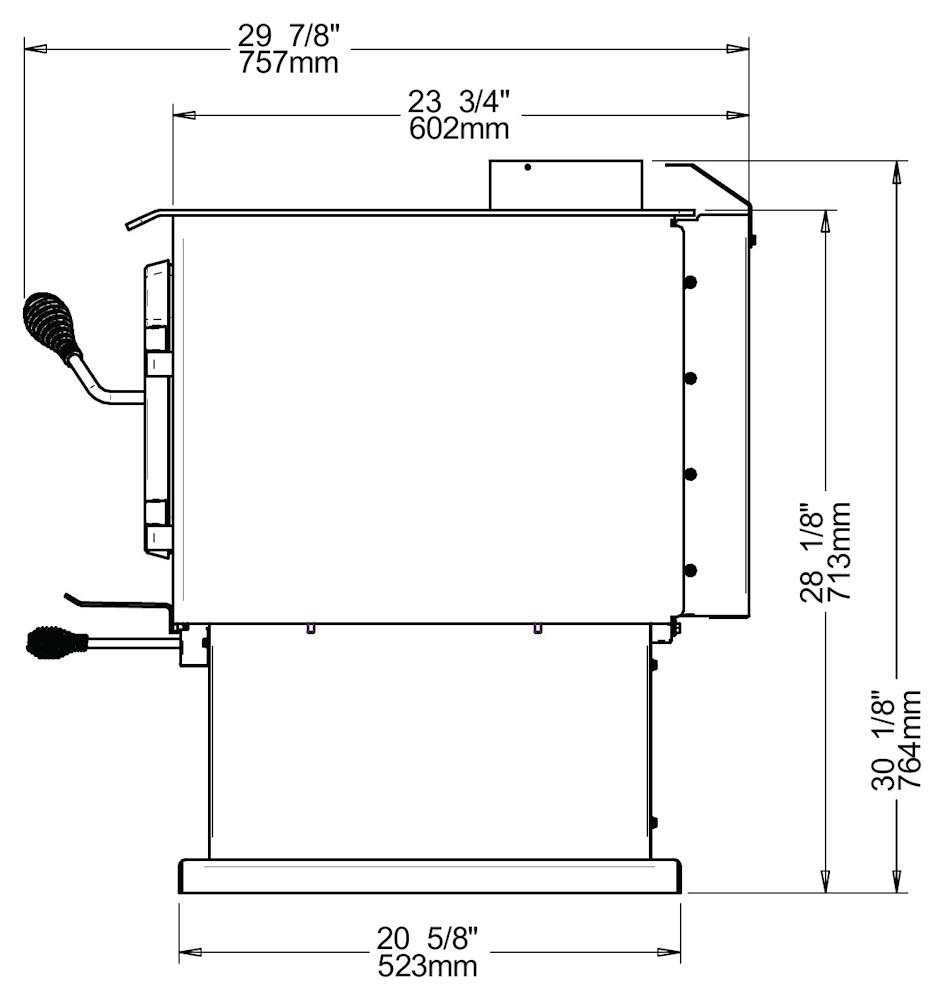

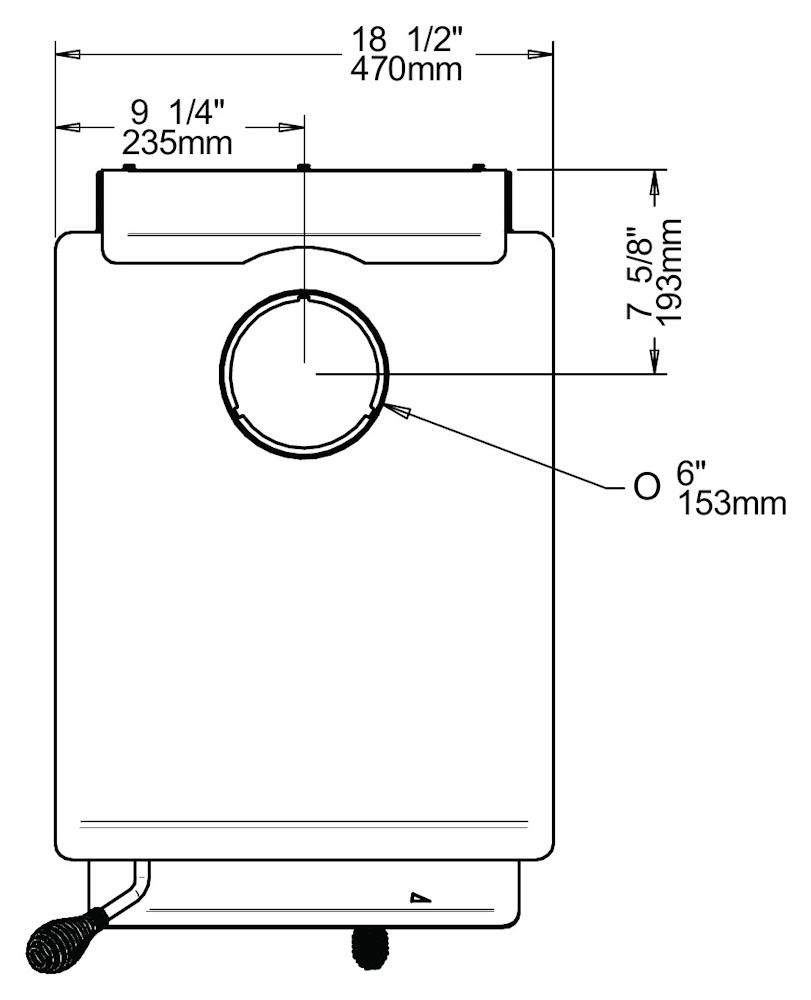

Unit Dimensions
|
30-1/8"H x 18-1/2"W x 29-7/8"D
|
|
Firebox Dimensions
|
11-3/4"H x 14-1/4"W x 18-7/8"D
|
|
Firebox Opening Size
|
7-5/8"H x 12"W
|
|
Max Log Length
|
17" (16" Recommended)
|
|
Average Burn Time
|
5 hr.
|
|
Emissions
|
1.7 g/hr.
|
|
Flue Size
|
6"
|
|
Minimum Chimney Height
|
12'
|
|
Shipping Weight
|
310 lbs.
|
|
UL-Certified
|
Yes
|
|
EPA Approved
|
Yes
|
|
Clearances
|
Canada
|
United States
|
|
|
Single Wall Pipe
|
Double Wall Pipe
|
Single Wall Pipe
|
Double Wall Pipe
|
|
Back Wall
|
14"
|
8"
|
14"
|
8"
|
|
Side Wall
|
24"
|
24"
|
24"
|
24"
|
|
Corner
|
16"
|
14"
|
16"
|
14"
|
|
Base of the Unit to Ceiling
|
84"
|
84"
|
84"
|
84"
|

|
|
|
 |
|
 |
|
