The smallest unit in the series, the Blue Ridge 100 N is the right choice for heating spaces up to 1,200 sq ft. With only 1.7 g/h of particulate emissions, this EPA-certified wood stove delivers up to 75,000 BTU/h. NexBurn technology ensures a more complete burn, supported by a combustion grate that promotes quick ignition. The addition of a tertiary combustion zone further enhances heating output. The steel top is reinforced with a stainless steel heat shield for added durability. The firebox features a deeper base than other models in its class, allowing for greater ash accumulation and less frequent cleanout. A straightforward unit; reliable and built to last.
Included: pedestal, ash lip, air control and top heat deflector
|
Specifications
|
Blue Ridge 100 N
|
|
Fuel
|
Wood
|
|
Maximum Heat Output
|
75,000 BTUs
|
|
Heat Area
|
250 - 1,200 sq. ft.
|
|
Optimum Efficiency
|
81%
|
|

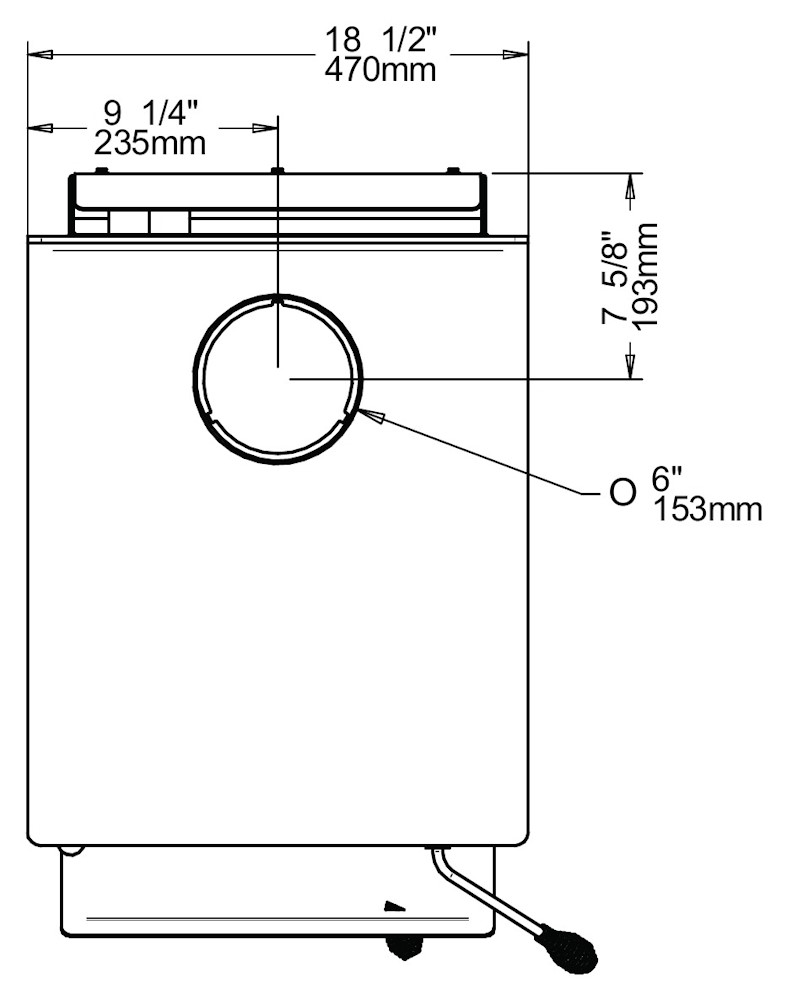

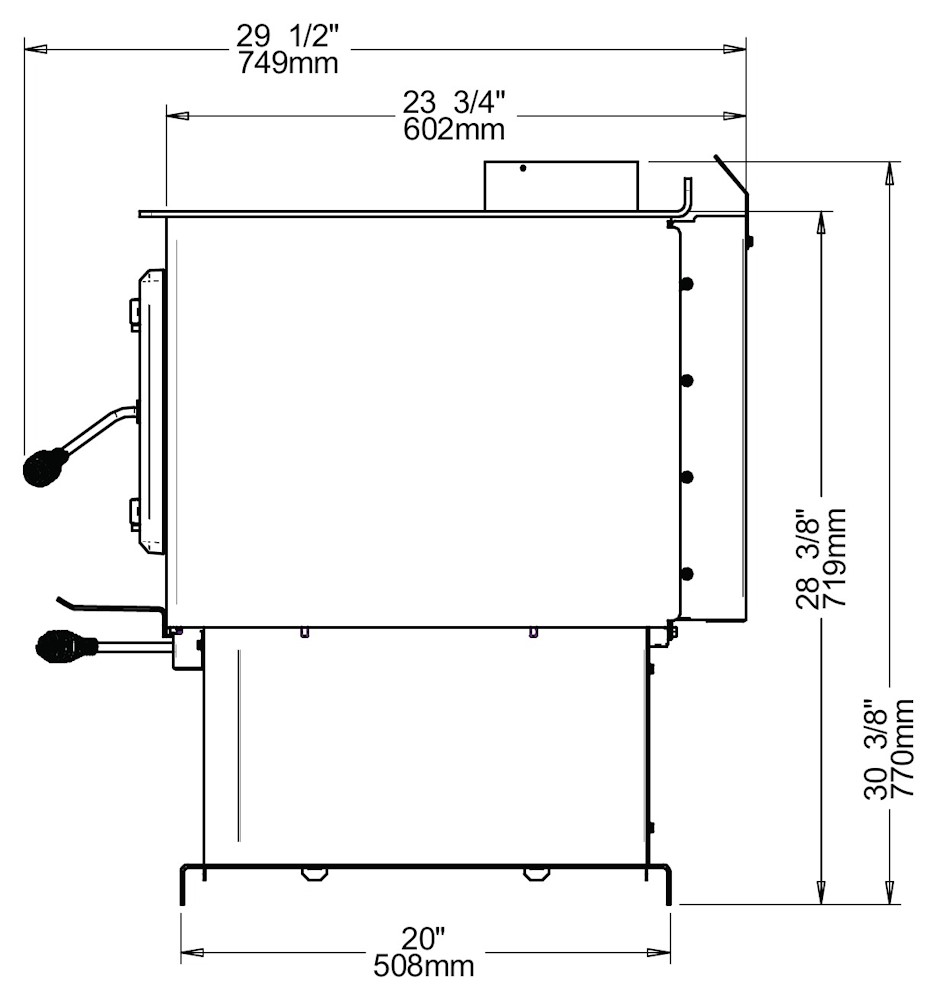

Unit Dimensions
|
30-3/8"H x 18-1/2"W x 29-1/2"D
|
|
Firebox Dimensions
|
11-3/4"H x 14-1/4"W x 18-7/8"D
|
|

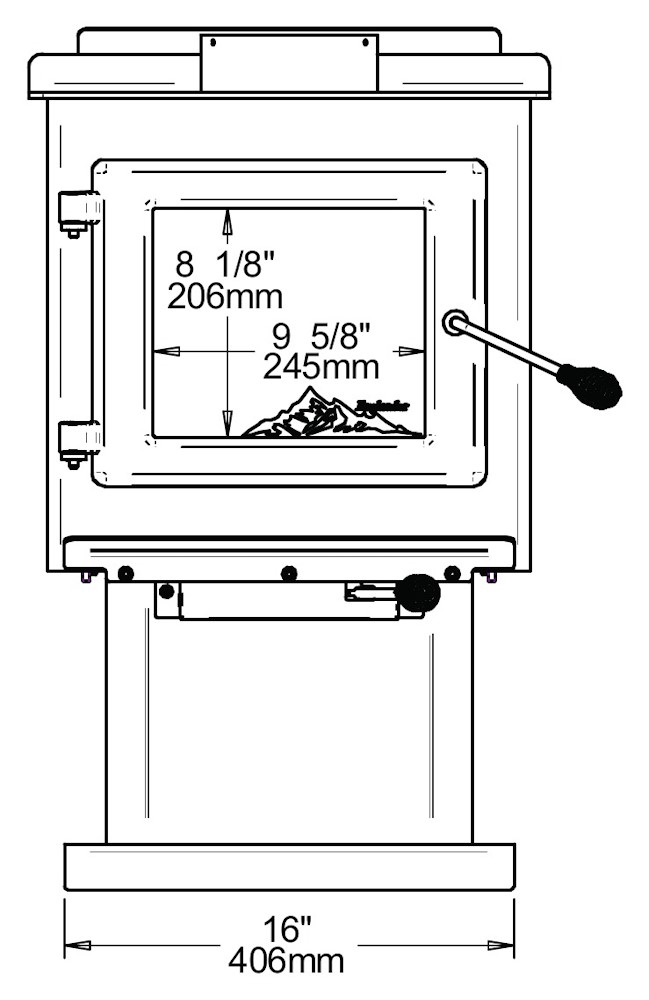

Firebox Opening Size
|
7-5/8"H x 12"W
|
|
Max Log Length
|
17" (16" Recommended)
|
|
Average Burn Time
|
5 hr.
|
|
Emissions
|
1.7 g/hr.
|
|
Flue Size
|
6"
|
|
Minimum Chimney Height
|
12'
|
|
Shipping Weight
|
293 lbs.
|
|
UL-Certified
|
Yes
|
|
EPA Approved
|
Yes
|
|
Clearances
|
Canada
|
United States
|
|
|
Single Wall Pipe
|
Double Wall Pipe
|
Single Wall Pipe
|
Double Wall Pipe
|
|
Back Wall
|
14"
|
8"
|
14"
|
8"
|
|
Side Wall
|
24"
|
24"
|
24"
|
24"
|
|
Corner
|
16"
|
14"
|
16"
|
14"
|
|
Base of the Unit to Ceiling
|
84"
|
84"
|
84"
|
84"
|

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
The Englander Blue Ridge 100 N to up to 1,200 square feet!
- High-efficiency 1.67 ft³ unit, ideal for smaller spaces
- Burn time up to 5 hours
- Steel top reinforced with stainless steel heat shield
- High-density firebricks
- Cast iron door with ceramic glass
- Airwash self-cleaning glass system for a clearer view of the flames
- EPA certified
- Made in Canada and the United States
- Approved for mobile home (with Outside Air Kit) and alcove installation
Options & Accessories

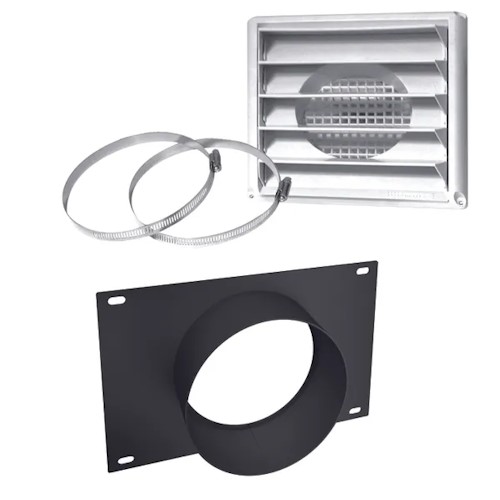

AC01336
Fresh Air Intake Kit 5"
|

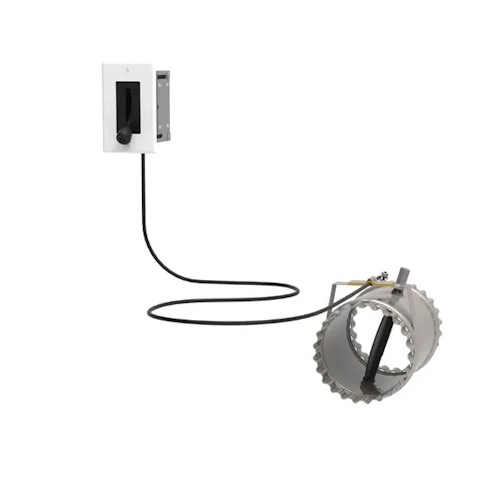

AC01349
Fresh Air Intake Register with Airtight Damper 5"
|

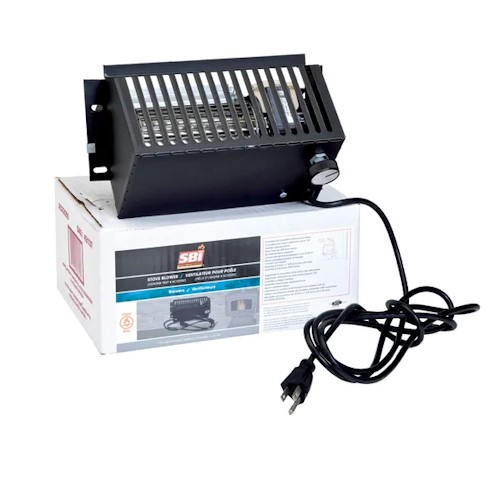

AC02050
Blower with Variable Speed Control 100 CFM
|

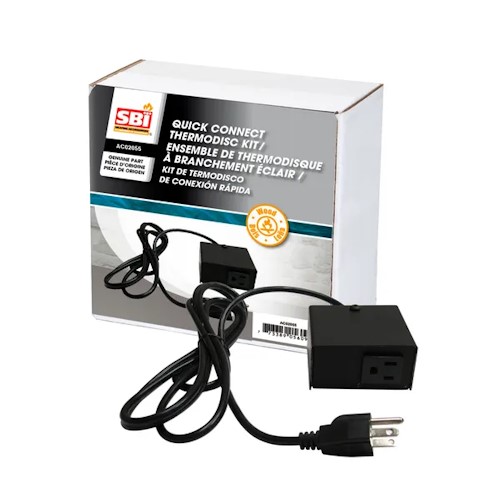

AC02055
Quick Connect Thermodisc
|

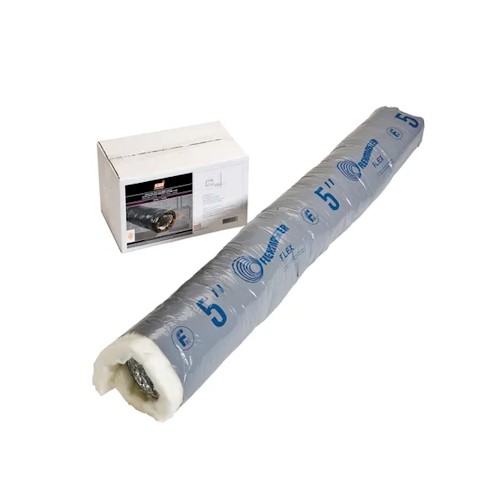

AC02090
Insulated Flex Pipe 4 ft x 5" Fresh Air Intake
|
|
|
|
|
|
|
|
|
