Product Specifications
|

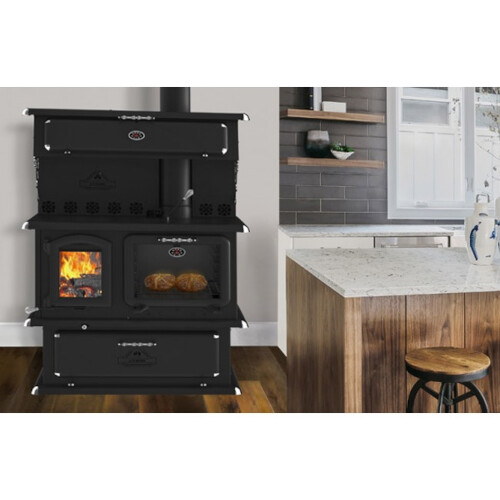

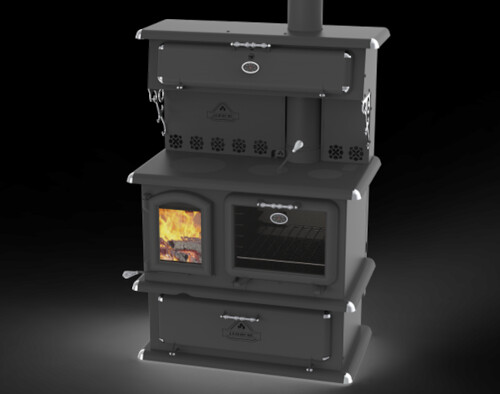

J.A. Roby Cuistot and Cook Wood Cook Stove
|
|
Overall Dimensions
|
41 ⅝"W X 58 ½"H* X 26 ¼"D
Height is to top of Warming Oven
|
|
Cook Top height
|
35 ½"
|
|
Height from cooktop to bottom of warmer
|
12 ½" with cook plates, and 13" without plates
|
|
Interior Oven Dimensions
|
Width 17 ½"
Height 12 ½"
Depth 18 ¾"
Volume 2,39 cu.ft.
|
|
Interior Food Warmer Dimensions
|
Width 39 ⅞"
Height 10 ¼"Depth 16 ¼"
|
|
Door Opening Dimensions Height
|
9 ⅛"H x 9"W
|
|
Firebox Dimensions
|
Width 12"
Height 11 ⅝"Depth 20"Volume 1.7 cu. ft.
|
|
Recommended Heating Area
|
1,000 - 2,000 sq. ft*
|
|
Maximum Output
|
70,000 BTU/h
|
|
Efficiency
|
64.5%
|
| Burn Time |
3-6 hours |
|
Maximum Log Length
|
17"
|
|
Chimney Type
|
2100° F - Solid Fuel Class A
|
|
Flue (Chimney) Size
|
6"
|
|
Minimum Chimney Height
|
12'
|
|
Tested & Approved
|
ULC S627-00 UL 1482-2011 & EPA Method 28R
|
|
Warranty
|
Limited Lifetime
|
|
Weight
|
532 lbs
|
|
Minimum Clearances to Combustibles
|
J.A. Roby Cuistot EPA Wood Cook Stove
|
|
Rear
|
2 ¼"
|
|
Right & Left Side
|
10"
|
|
Right & Left Corners
|
8"
|
|
Ceiling
|
84" (measured from floor)
|
*Recommended heating area is determined by a formula using the home’s square footage, the insulation value of the home, and climate conditions. Species of wood burned can also produce different results.
This stove is mobile home approved, UL/ULC Tested and Washington State Approved.Additional Info on Minimum clearances to combustible materialWith these reduced clearances, this appliance takes minimum space to be installed.
Here is the minimum clearance for different certified flue pipe:
Double Wall Flue Pipe Distance -
Single Wall Flue Pipe -
Single Wall Flue Pipe with Shield*** -
Floor protection plate minimum dimensions
The following dimensions are the minimum values and they can be greater.
- Width: 57-5/8" (146.4 cm)
- Depth: 51" (129.5 cm)
- Thickness: 3/8" (1 cm)
In the United Stats, the depth can be less than the value above.
Clearances of the stove until the floor plate protection
The following dimensions are the minimum values and they can be greater.
Canada:
- 8" (20.3 cm) rear
- 8" (20.3 cm) side
- 18" (45.7 cm) from the door glass
United States:
- 8" (20.3 cm) rear
- 8" (20.3 cm) side
- 16" (40.64 cm) from the door glass
Floor protection
Your stove must be installed on a non-combustible material plate to protect the floor and avoid fire that might be caused by:
- Projections of sparks when opening door or loading logs;
- The heat radiation from the stove which might cause an auto-ignition to the floor or to the floor covering;
- Possible flow of creosote when there is a fire chimney.
The coating used for the protection must be non-combustible and approved according to UL1618 standard for the USA or to the local codes (Example: cement, brick, ceramic tiles, etc.)
HORIZONTAL VENTING MANDATORY PROTECTION: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and it should extend 2" (51 mm) beyond each side of the pipe projection on the floor.
You can extend the protection plate while respecting the clearances of each side of the stove.
***To know how to reduce that dimension, you have to contact your local authority for installing a heat shield on a wall. The Installation with reduced clearances must comply with standard NFPA211 or CAN/CSA-B365.
