Add warmth and coziness to your home with the Osburn 950. This small wood stove will bring comfort and functionality to your daily life. The 950 comes fully equipped with high density bricks, a stainless steel heat shield added to the C-Cast fire stop, and a top heat deflector to redirect heat as well as side panels that reduce clearances. This wood stove is EPA 2020 approved and can heat an area from 250 - 1,200 square feet. The firebox is lined with refractory bricks to ensure better heat distribution and a stainless-steel secondary-air system improves the gas combustion. Additional accessories are available including a fire-screen and outside air kits. Enjoy your winter evenings more than ever before with the quality and performance of the Osburn 950!
Appliance Performance
|
Fuel type:
|
Dry Cordwood (16" Recommended)
|
|
Heating area:
|
250 - 1,200 sq. ft.
|
|
Overall firebox volume:
|
1.7 cubic ft.
|
|
EPA loading volume:
|
1.55 cubic ft.
|
|
Maximum burn time:
|
5 hours
|
|
Maximum heat output:
|
45,000 BTU/h
|
|
Overall heat output rate:
|
12,124 - 26,700 BTU/h
|
|
Average overall efficiency:
|
74 - 79%
|
|
Optimum overall efficiency:
|
80%
|
|
Optimum heat transfer efficiency:
|
79%
|
|
Average particulate emissions rate:
|
1.8 g/h
|
|
Average CO:
|
74 g/h
|
General Features
|
Combustion technology:
|
Non-catalytic
|
|
High-efficiency certified appliance:
|
EPA 2020 Approved
|
|
Maximum log length:
|
17"
|
|
Log positioning:
|
Loading over depth
|
|
Chimney diameter:
|
6"
|
|
Flue outlet diameter:
|
6"
|
|
Type of chimney:
|
CAN/ULS S629, UL 103 HT
|
|
Minimum chimney height:
|
12'
|
|
Baffle type:
|
C-Cast or equivalent
|
|
Approved for alcove installation:
|
Yes
|
|
Approved for mobile home installation:
|
Yes, w/ fresh air intake
|
|
Shipping Weight:
|
317 lb (144 kg)
|
|
Door type:
|
Single, glass w/ cast iron frame
|
|
Glass type:
|
Ceramic glass
|
|
Glass surface dimensions:
|
10 1/4" W x 8 7/8" H
|
|
Glass air-wash system:
|
Yes
|
|
Overall dimensions:
|
28 7/8" H x 20 1/4" W x 27 7/8" D
|
|
Door opening dimensions:
|
7 5/8" H x 12" W
|
|
Firebox dimensions:
|
11 3/4" H x 14 1/4" W x 19 1/8" D
|
|
Firebox lined w/ refractory bricks:
|
Yes
|
|
Stainless-steel secondary-air system:
|
Yes
|
|
Steel thickness - body:
|
3/16"
|
|
Steel thickness - top:
|
5/16"
|
|
USA standard (emissions):
|
EPA
|
|
Canadian standard (emissions):
|
CSA B415.1-10
|
|
USA standard (safety):
|
UL 1482, UL 737
|
|
Canadian standard (safety):
|
ULC S627
|
|
Tested and listed as per applicable standards:
|
By an accredited laboratory (CAN/USA)
|
|
Warranty:
|
Limited lifetime - see manual for details
|
Minimum Clearances to Combustibles:
|
CAN - single wall pipe
|
CAN - double wall pipe
|
USA - single wall pipe
|
USA - double wall pipe
|
|
Clearance - back wall: |
14" |
6" |
12" |
6" |
|
Clearance - corner:
|
11" |
6" |
11" |
12" |
|
Clearance - side wall:
|
12" |
12" |
12" |
12" | | Clearance - top**:
|
84" |
84" |
84" |
84" |
* Data expressed in inches. 1 inch = 25.4 mm ** Measured from the platform on which the appliance is installed. Some appliances have been tested with a low ceiling. Refer to installation manual before setting up unit.

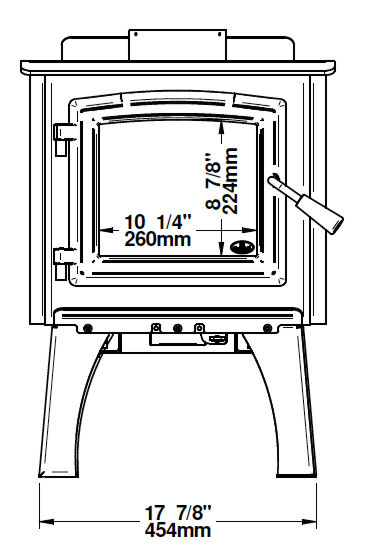

Front View
|

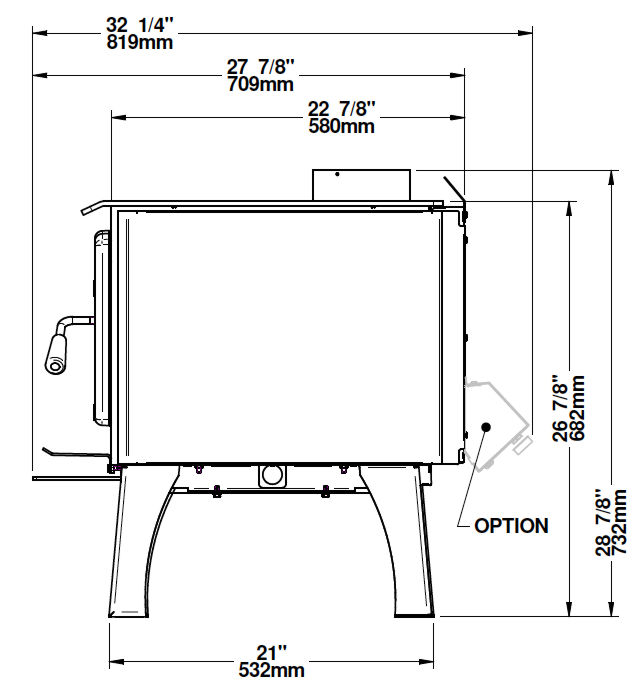

Side View
|

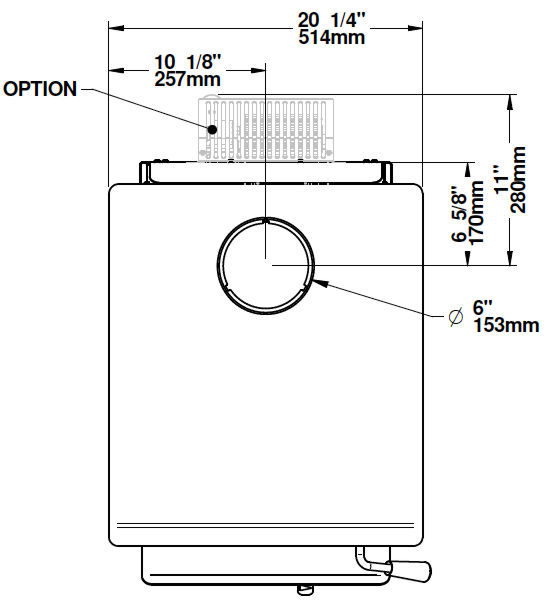

Top View
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Up to 5 hours burn time
- Up to 16'' logs
- 1.7 ft³ firebox
- Heavy duty 5/16'' steel top
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- Options: blower, thermodisc, firescreen, fresh air intake kit
- Qualifies for Federal Tax Credit
Rigid Firescreen
|

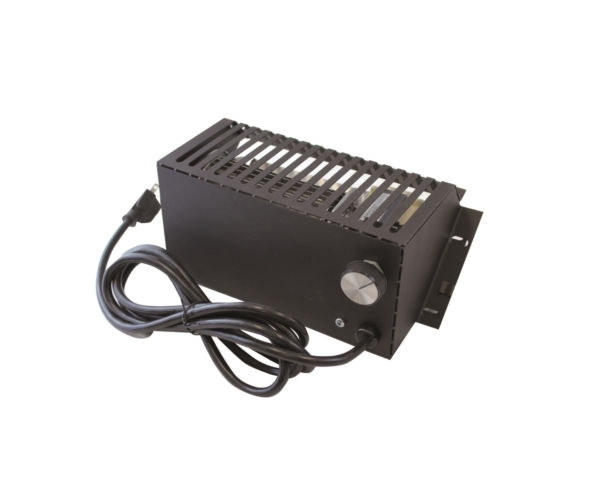

Blower with Thermodisc
|
|
|
5" Fresh Air Intake Kit for Wood Stove
on Legs with 5" Insulated Flex
Pipe for Fresh Air Intake Kit.
|
Fresh Air Intake Register with Damper
|
|
|
|
|
|
|
|
|
|
