Among the most compact on the market, the Drolet Spark II N Wood Stove can heat an area of up to 1,200 sq. ft., with a new heat output reaching up to 75,000 BTU/h. It is non-catalytic and EPA certified, with an emissions rate of 1.7 g/h. NexBurn technology ensures more complete combustion, supported by a combustion grid that promotes quick ignition and optimizes burn efficiency. A newly added tertiary combustion zone further enhances heating performance. The deeper firebox allows for greater ash accumulation, reducing maintenance frequency. The steel top is reinforced with a stainless steel heat shield for increased durability. Packaged in a rigid box, the unit is easy to transport and simple to assemble.
Includes: steel legs, rear heat deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air control, stainless steel heat shield
|
Specifications
|
Spark II N
|
|
Fuel
|
Wood
|
|
Maximum Heat Output
|
75,000 BTUs
|
|
Heat Area
|
250 - 1,200 sq. ft.
|
|
Optimum Efficiency
|
81%
|
|

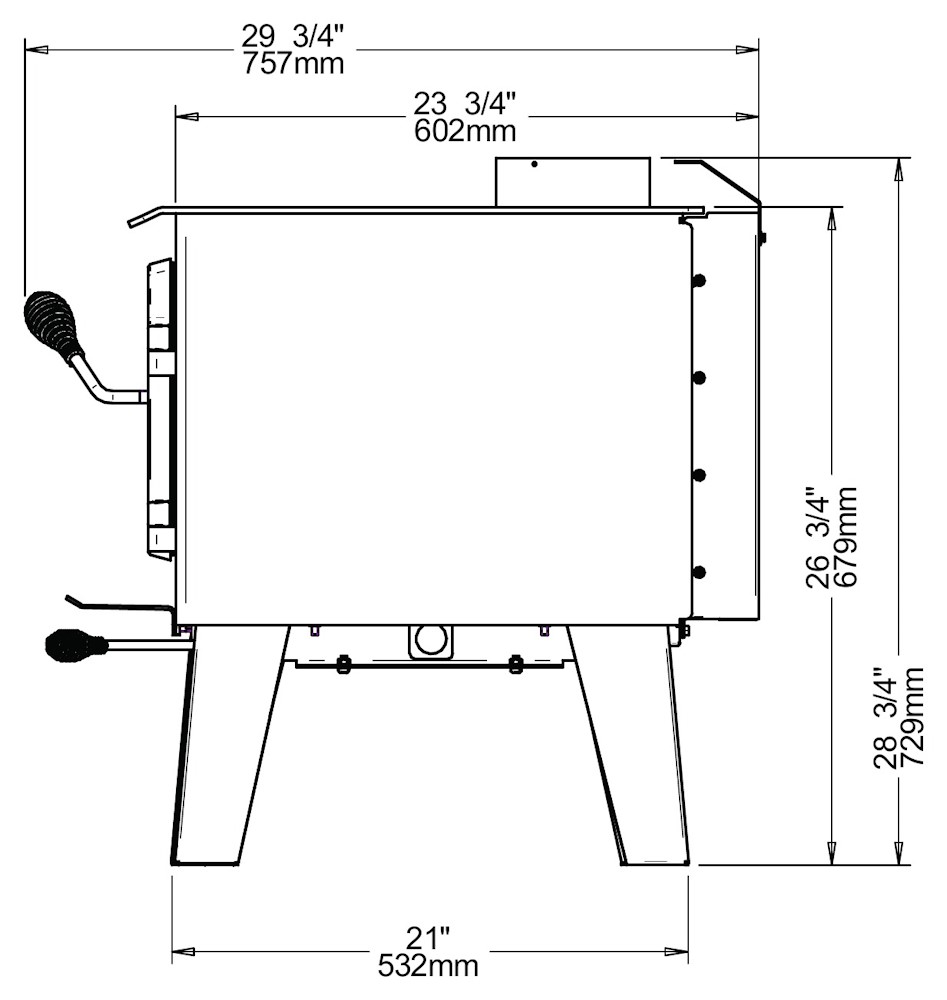

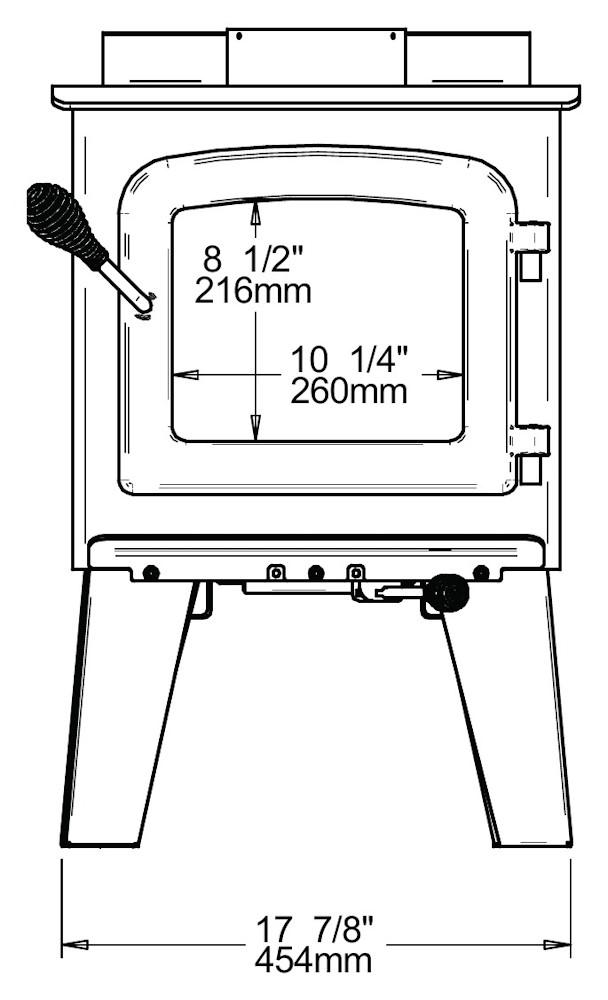

Unit Dimensions
|
28-3/4"H x 18-1/2"W x 29-3/4"D
|
|
Firebox Dimensions
|
11-3/4"H x 14-1/4"W x 18-7/8"D
|
|
Firebox Opening Size
|
7-5/8"H x 12"W
|
|
Max Log Length
|
17" (16" Recommended)
|
|
Average Burn Time
|
5 hr.
|
|
Emissions
|
1.7 g/hr.
|
|

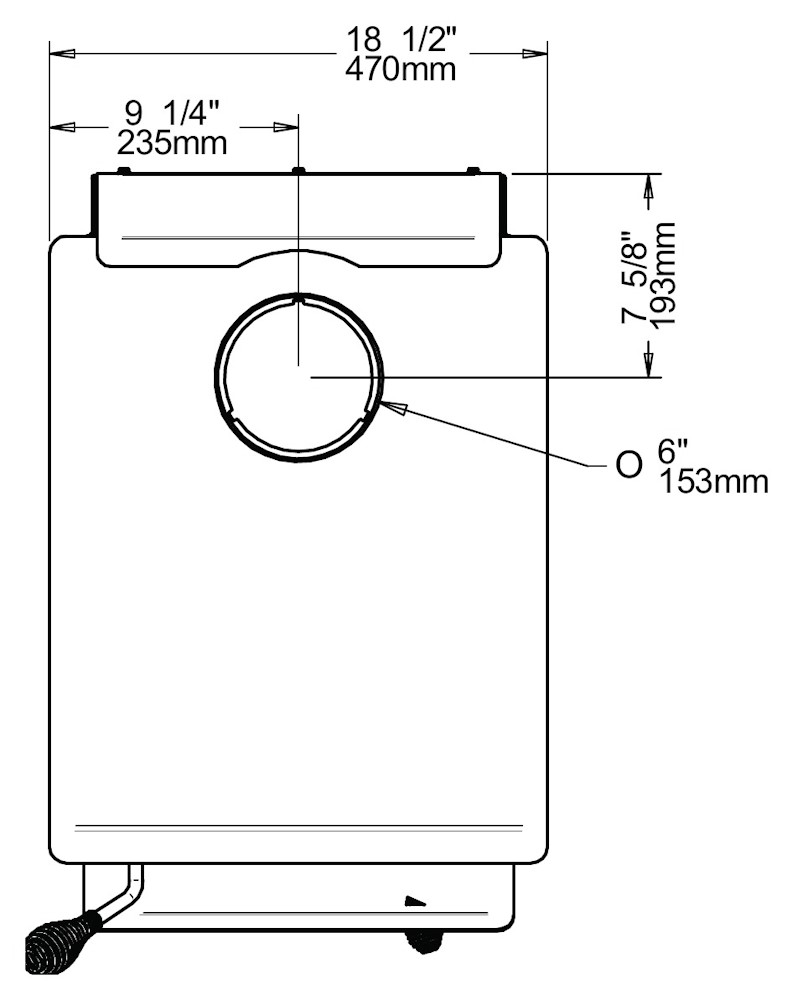

Flue Size
|
6"
|
|
Minimum Chimney Height
|
12'
|
|
Shipping Weight
|
244 lbs.
|
|
UL-Certified
|
Yes
|
|
EPA Approved
|
Yes
|
|
Clearances
|
Canada
|
United States
|
|
|
Single Wall Pipe
|
Double Wall Pipe
|
Single Wall Pipe
|
Double Wall Pipe
|
|
Back Wall
|
14"
|
8"
|
14"
|
8"
|
|
Side Wall
|
24"
|
24"
|
24"
|
24"
|
|
Corner
|
16"
|
14"
|
16"
|
14"
|
|
Base of the Unit to Ceiling
|
84"
|
84"
|
84"
|
84"
|

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
The Spark II N heats up to 1,200 square feet!
- Burn time up to 5 hours
- 17" logs
- 1.67 cu. ft. firebox
- Self-cleaning glass system (airwash) for a clearer view of the flames
- EPA certified
- Proudly made in Quebec and the United States
- Limited lifetime warranty
- Certified for mobile home (with Outside Air Kit) and alcove installation
Options & Accessories

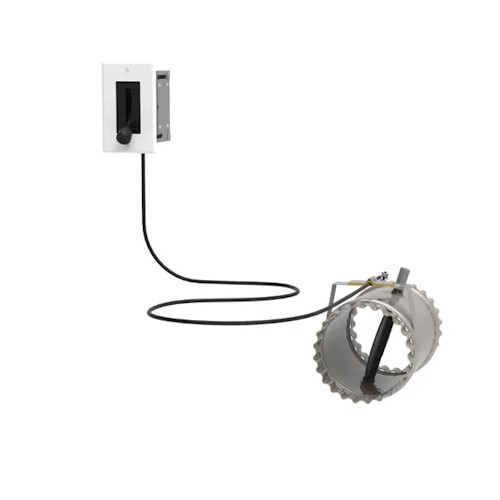

AC01349
Fresh Air Intake Register with Airtight Damper 5"
|

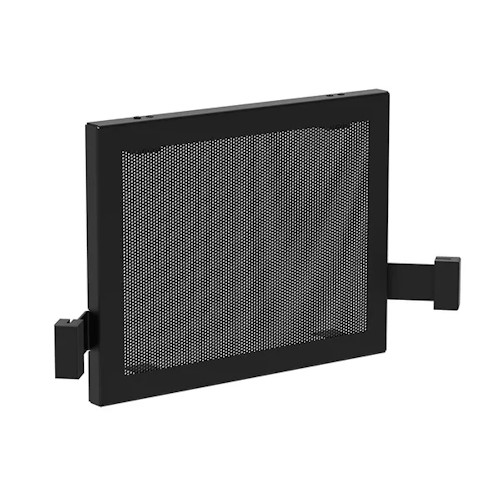

AC01420
Rigid Firescreen
|

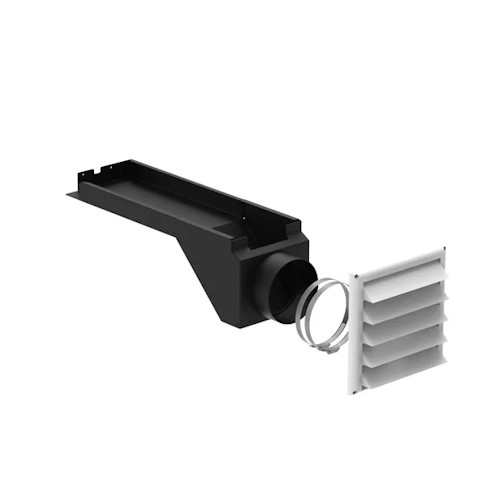

AC01422
Fresh Air Intake Kit 5"
|

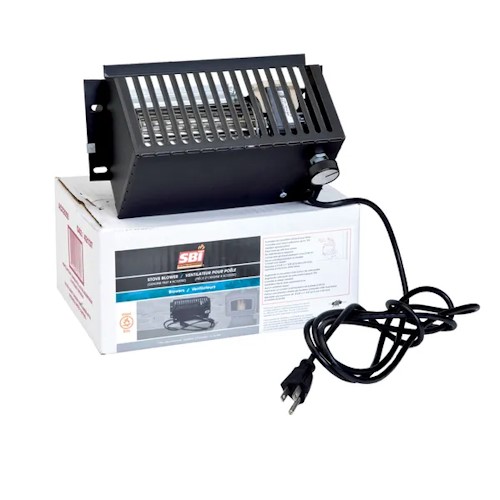

AC02050
Blower with Variable Speed Control 100 CFM
|

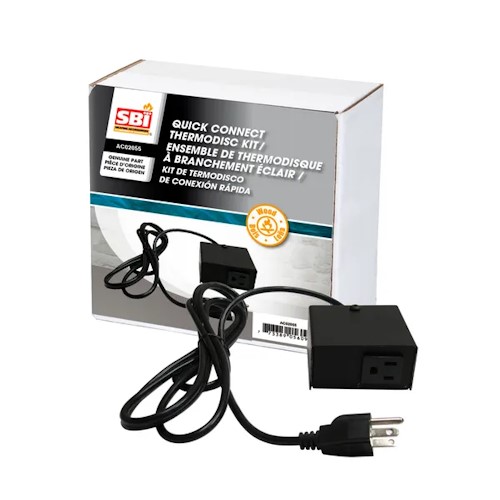

AC02055
Quick Connect Thermodisc
|

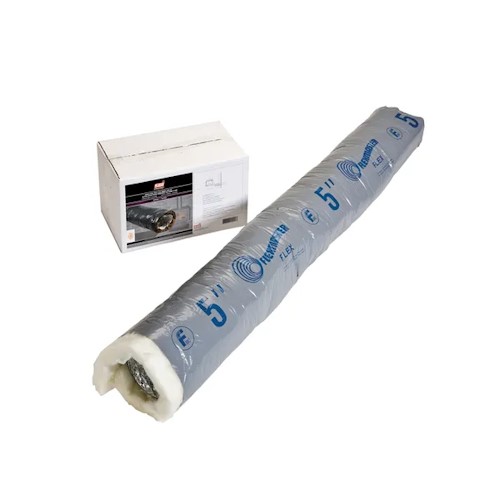

AC02090
Insulated Flex Pipe 4 ft x 5" Fresh Air Intake
|

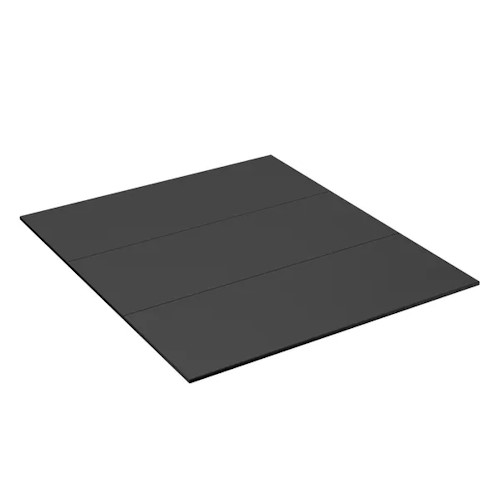

AC02711
Modular Hearth Pad System 54" x 46.75"
|

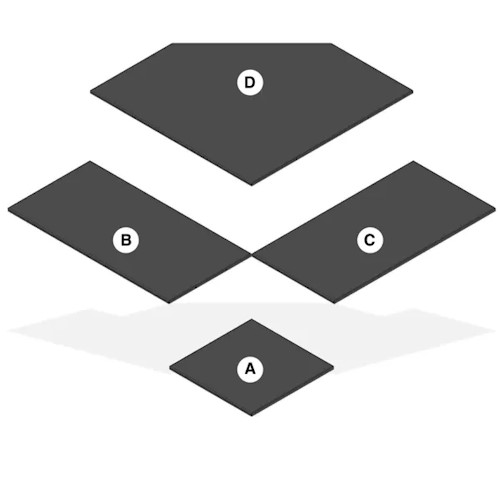

AC02786
Modular Hearth Pad System 54" Corner
|

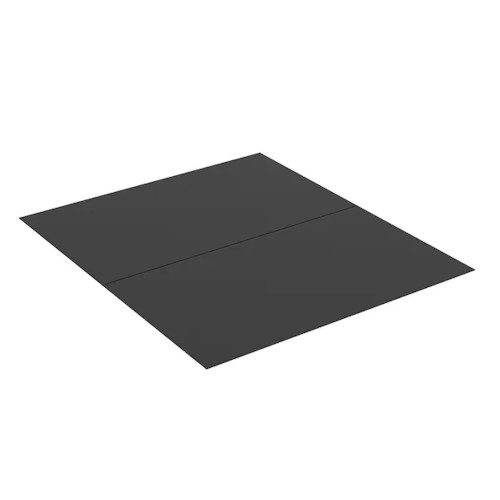

AC02788
Black Steel Hearth Pad 46.75" x 54"
|

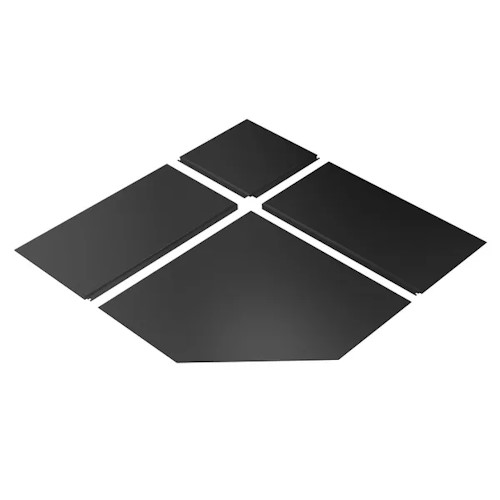

AC02789
Black Steel Hearth Pad 54" Corner
|

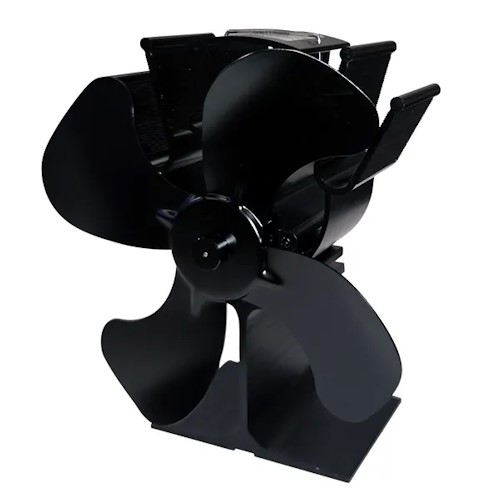

AC03513
Heat Operated Fan 178 CFM
|
|
|
|
|
|
|
|
|
