The Drolet Deco Nano N Wood Stove can heat an area of up to 1,200 sq. ft., with a new heat output reaching up to 75,000 BTU/h. This wood stove is non-catalytic and EPA certified, with an emissions rate of 1.7 g/h, and features NexBurn technology, ensuring more complete combustion thanks to a combustion grid that promotes quick ignition, along with a tertiary combustion zone that enhances performance. Its modern design, above-average height, and integrated storage space make it as practical as it is elegant. The deeper firebox allows for greater ash accumulation, reducing maintenance frequency, while the steel top is reinforced with a stainless steel heat shield for increased durability.
Includes: pedestal with log storage, rear heat deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air control, stainless steel heat shield
|
Specifications
|
Deco Nano N
|
|
Fuel
|
Wood
|
|
Maximum Heat Output
|
75,000 BTUs
|
|
Heat Area
|
250 - 1,200 sq. ft.
|
|
Optimum Efficiency
|
81%
|
|

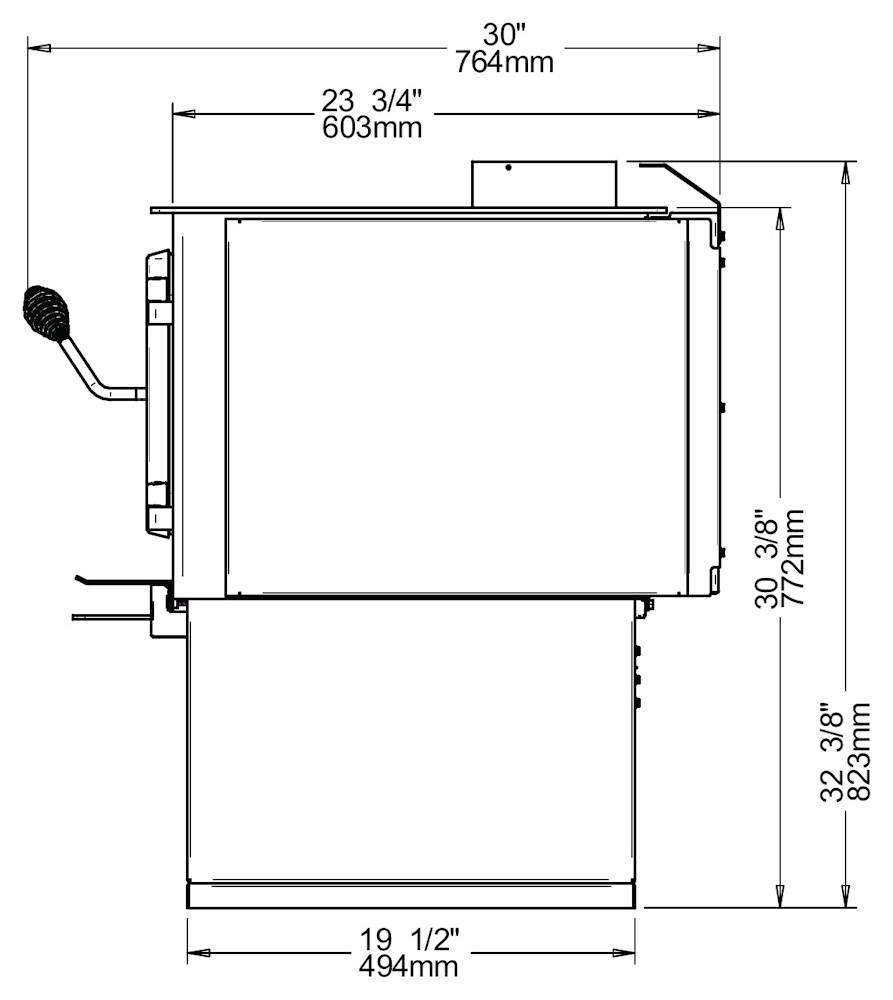

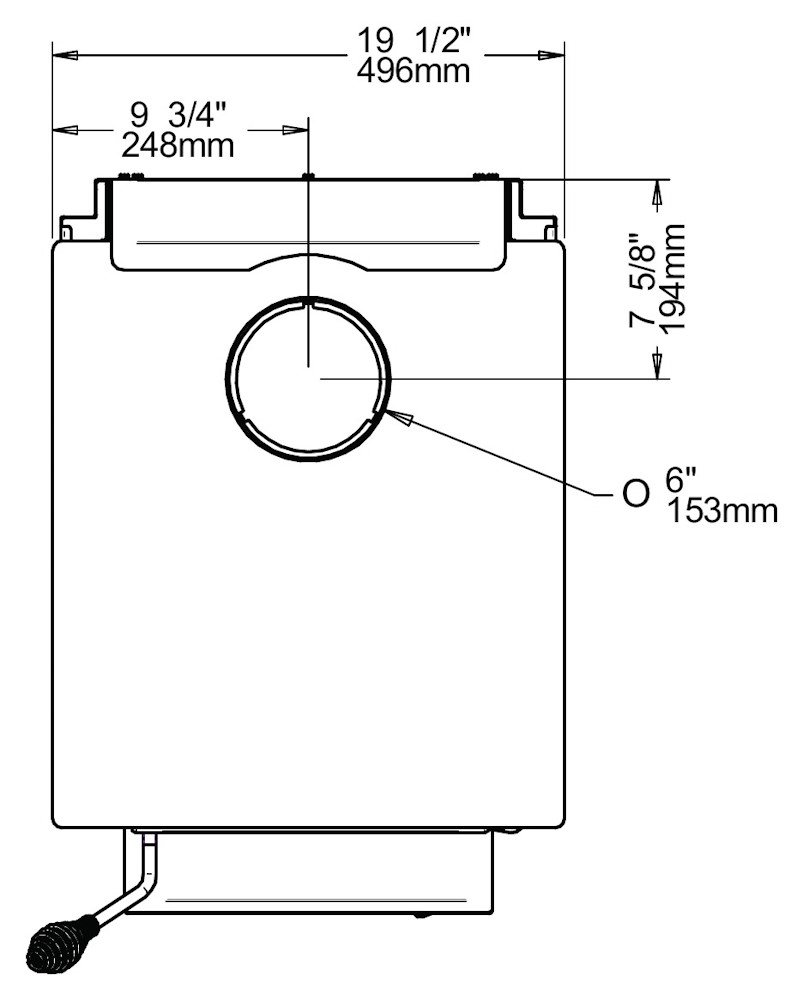

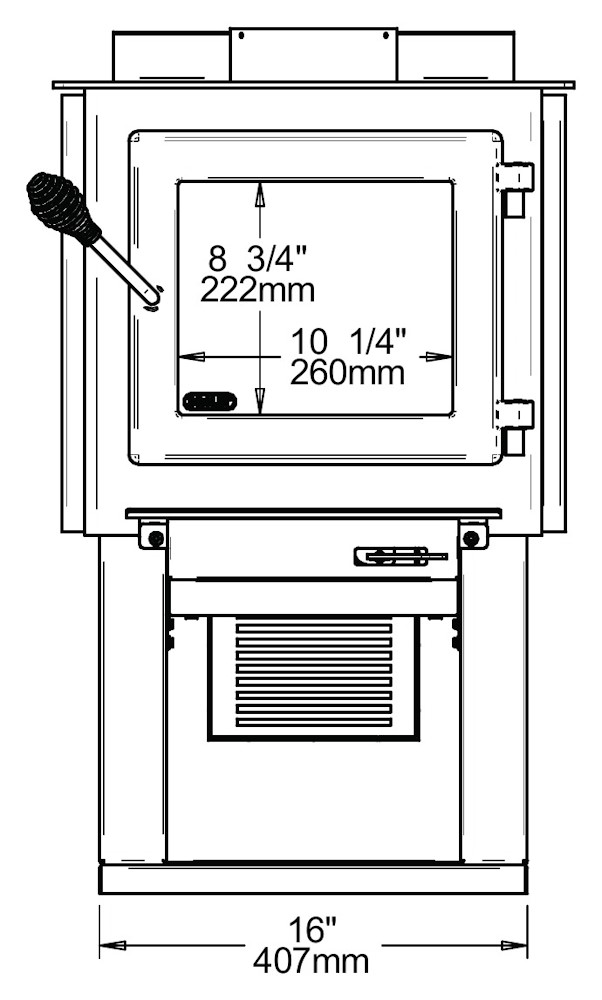

Unit Dimensions
|
32-3/8"H x 19-1/2"W x 30"D
|
|
Firebox Dimensions
|
11-3/4"H x 14-1/4"W x 18-7/8"D
|
|
Firebox Opening Size
|
7-5/8"H x 12"W
|
|
Max Log Length
|
17" (16" Recommended)
|
|
Average Burn Time
|
5 hr.
|
|
Emissions
|
1.7 g/hr.
|
|
Flue Size
|
6"
|
|
Minimum Chimney Height
|
12'
|
|
Shipping Weight
|
335 lbs.
|
|
UL-Certified
|
Yes
|
|
EPA Approved
|
Yes
|
|
Clearances
|
Canada
|
United States
|
|
|
Single Wall Pipe
|
Double Wall Pipe
|
Single Wall Pipe
|
Double Wall Pipe
|
|
Back Wall
|
14"
|
8"
|
14"
|
8"
|
|
Side Wall
|
19"
|
15"
|
19"
|
15"
|
|
Corner
|
16"
|
12"
|
16"
|
12"
|
|
Base of the Unit to Ceiling
|
84"
|
84"
|
84"
|
84"
|

|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
The Deco Nano N heats up to 1,200 square feet!
- Burn time up to 5 hours
- 17" logs
- 1.67 cu. ft. firebox
- Self-cleaning glass system (airwash) for a clearer view of the flames
- EPA certified
- Proudly made in Quebec and the United States
- Limited lifetime warranty
- Certified for mobile home (with Outside Air Kit) and alcove installation
Options & Accessories

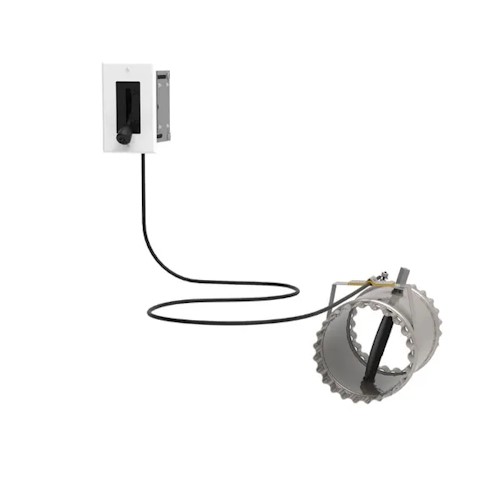

AC01349
Fresh Air Intake Register with Airtight Damper 5"
|

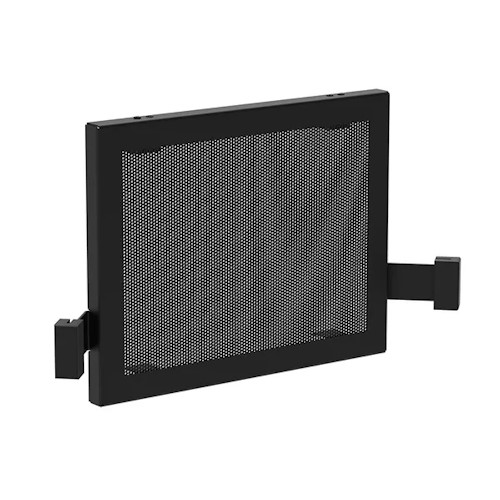

AC01420
Rigid Firescreen
|

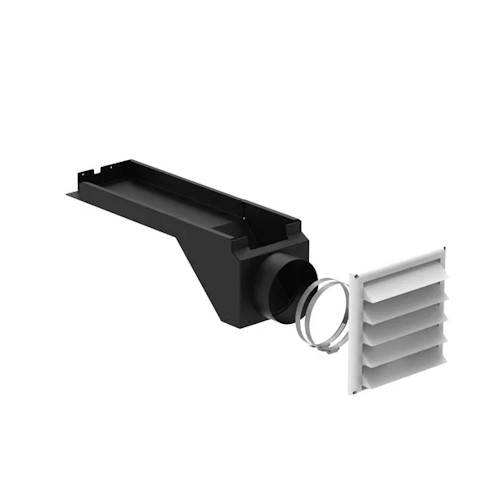

AC01422
Fresh Air Intake Kit 5"
|

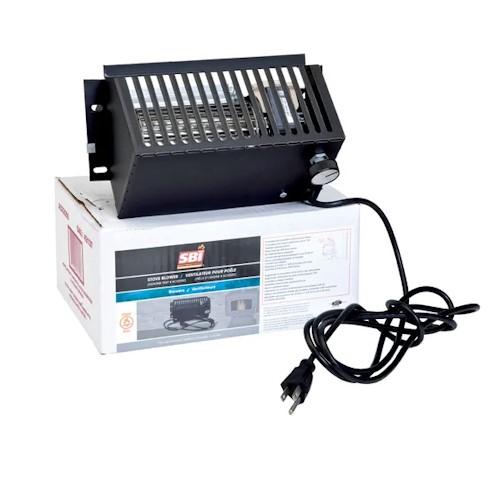

AC02050
Blower with Variable Speed Control 100 CFM
|

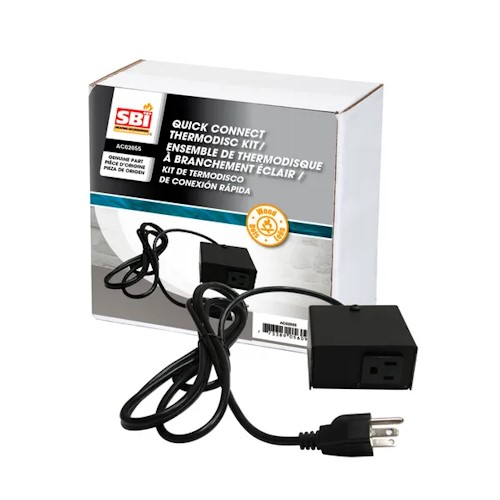

AC02055
Quick Connect Thermodisc
|

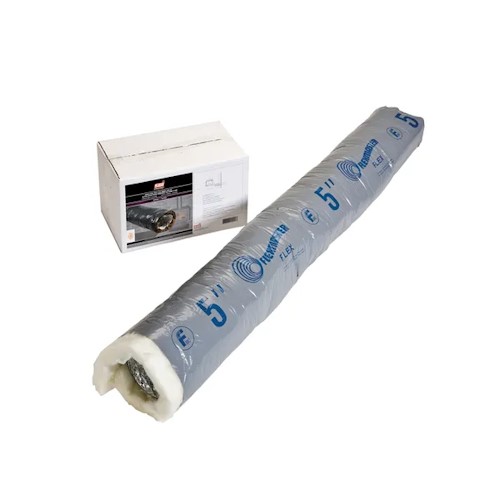

AC02090
Insulated Flex Pipe 4 ft x 5" Fresh Air Intake
|

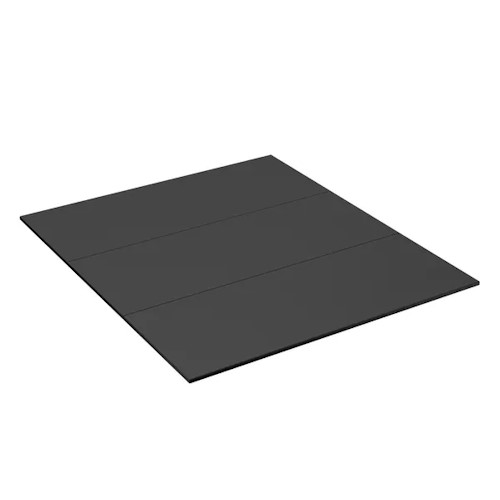

AC02711
Modular Hearth Pad System 54" x 46.75"
|

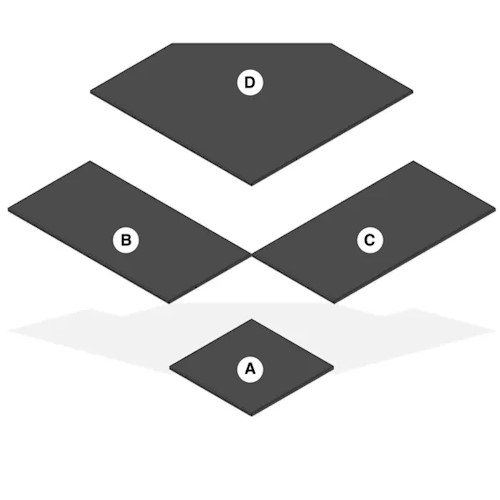

AC02786
Modular Hearth Pad System 54" Corner
|

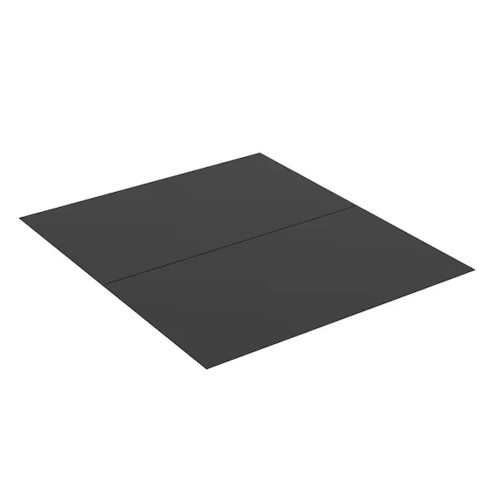

AC02788
Black Steel Hearth Pad 46.75" x 54"
|

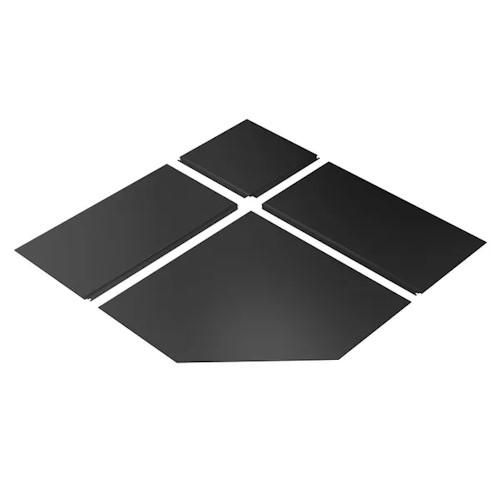

AC02789
Black Steel Hearth Pad 54" Corner
|

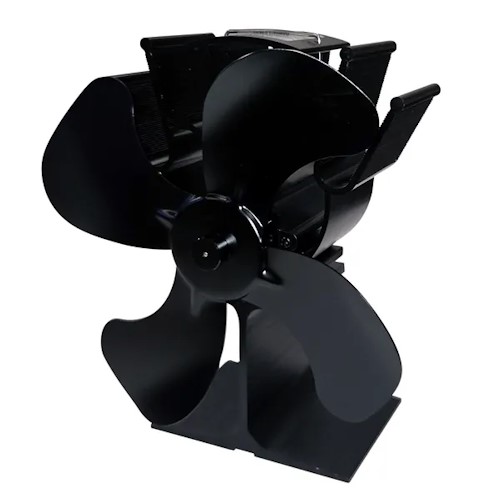

AC03513
Heat Operated Fan 178 CFM
|
|
|
|
|
|
|
|
|
